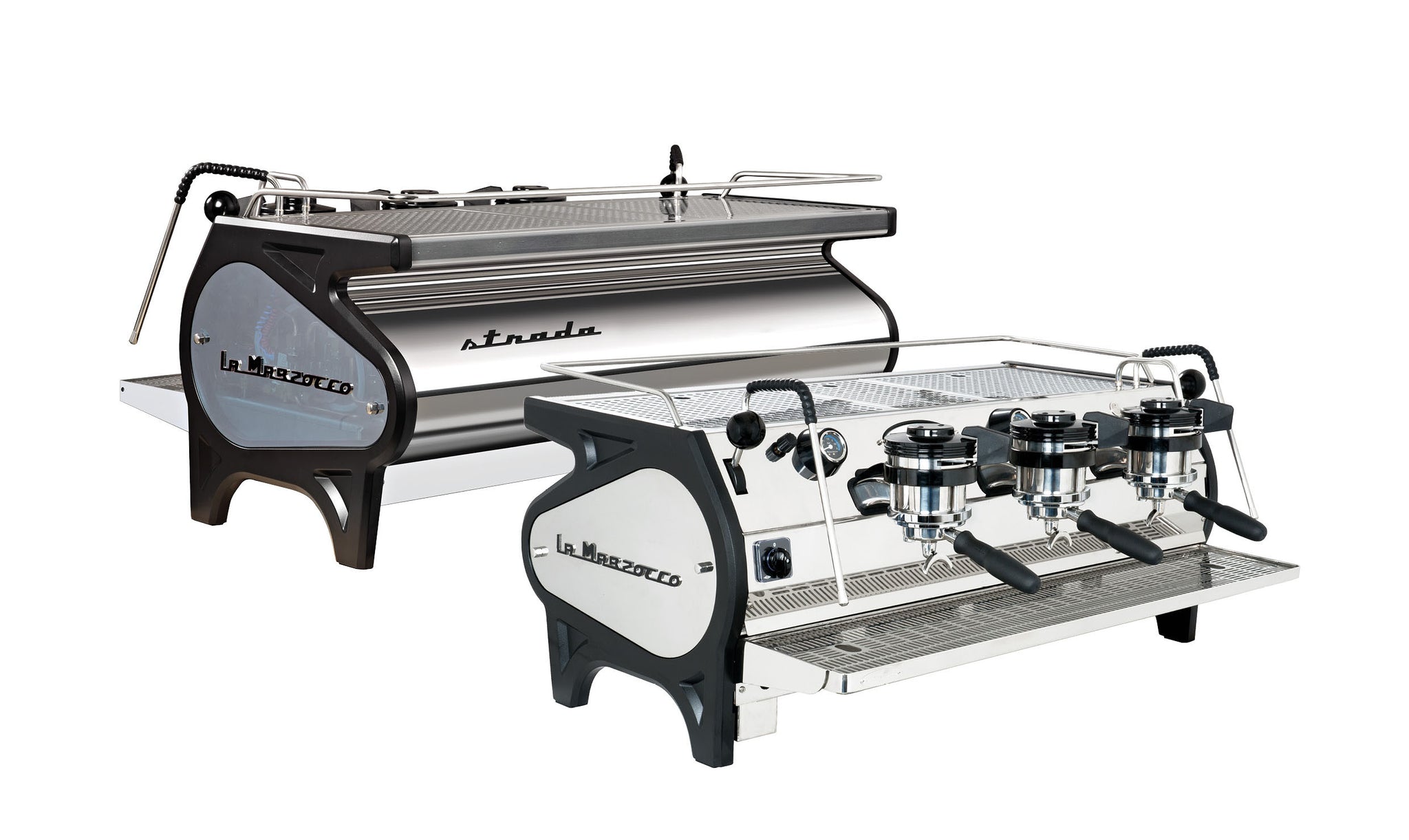

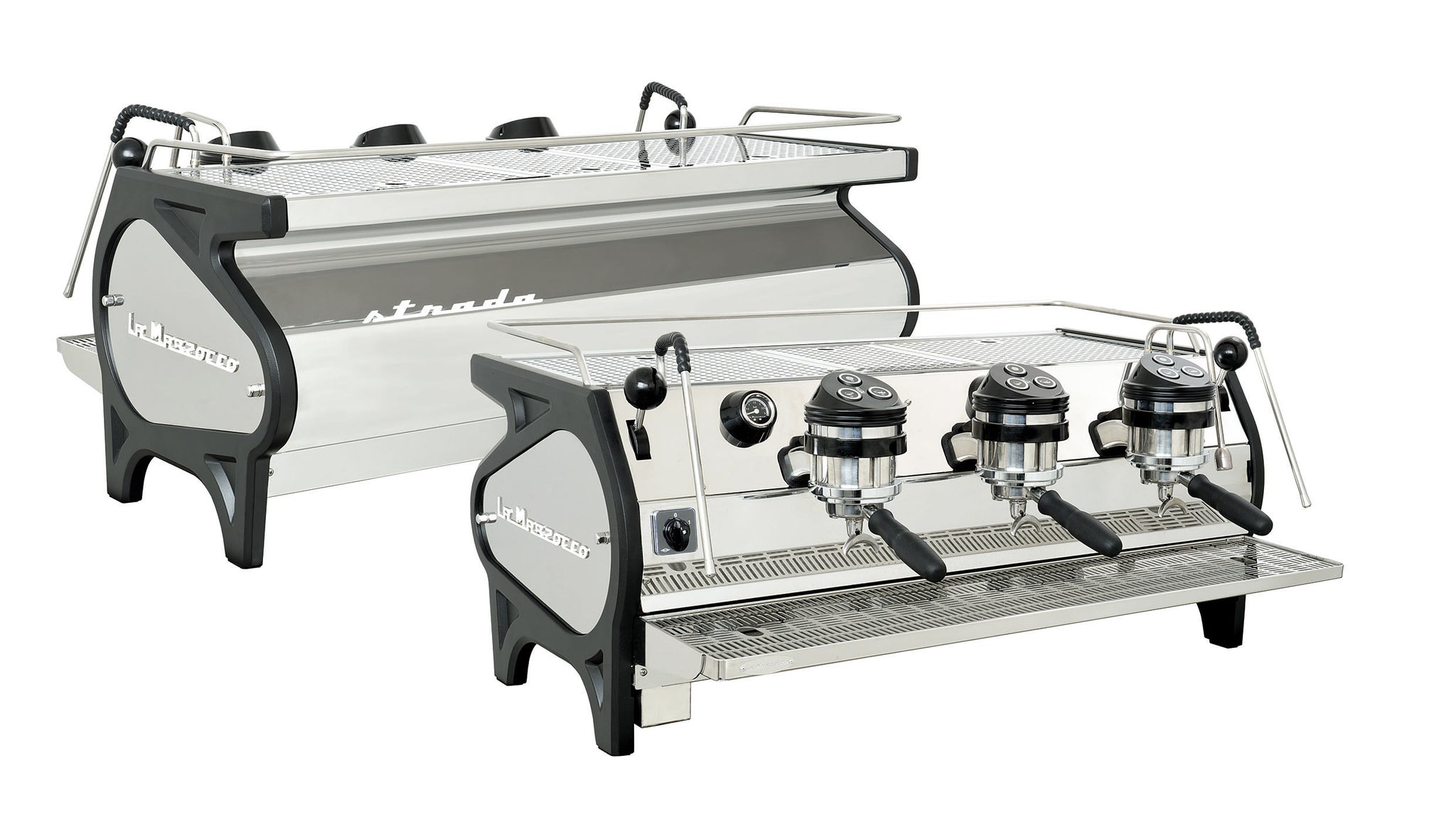

The current Strada, replacing the AV, EE, EP and MP generation. Independent brew boilers, saturated groups, Pro Touch steam wands and an insulated boiler.
S or X

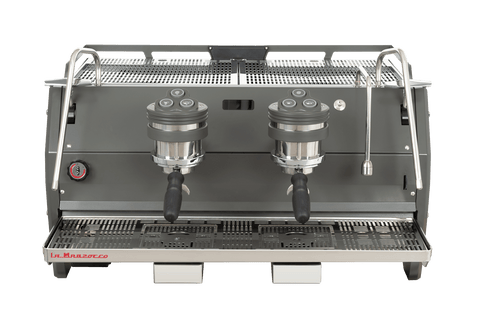

Strada S is the analog machine. A proportional steam valve with lever-style activation, auto-volumetric dosing, drip tray scales optional. 2, 3 and 4 group.

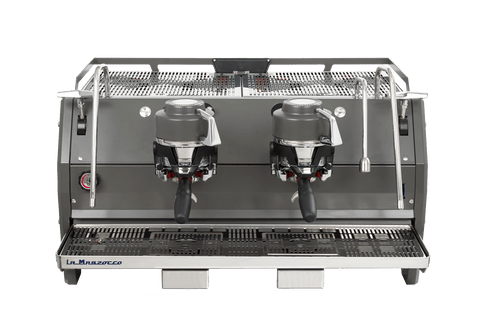

Strada X adds paddle-based profile control with three brewing modes: manual on the paddle between 0 and 12 bars, profile brewing, and auto-volumetric to a target weight at consistent pressure. Mass-based profiling with integrated scales, and Smart Saturation preinfusion that watches flow rate rather than running a timer. 1, 2 and 3 group.
Specifications
|
1 group (X) |
2 group |
3 group |
| Dimensions (W x D x H) |
20.9" x 27.2" x 19.7" |
32.7" x 27.2" x 19.7" |
40.6" x 27.2" x 19.7" |
| Weight |
132.3 lbs |
169.8 lbs (S) / 207.3 lbs (X) |
207.3 lbs (S) / 222.7 lbs (X) |
| Voltage |
208-240 VAC, 1 phase, 60 Hz |
208-240 VAC, 1 phase, 60 Hz |
208-240 VAC, 1 phase, 60 Hz |
| Element wattage |
2037-2220 W |
4330-5666 W |
5830-7783 W |
| Steam boiler |
3.5 L |
8.2 L |
11.8 L |
| Brew boilers |
1.3 L |
1.3 L x 2 |
1.3 L x 3 |
| Amp service required |
15 |
30 |
50 |
Certifications: UL-197, NSF-4, CAN/CSA-C22.2 No. 109. Four group Strada S is available; La Marzocco does not publish its spec column, so ask us.
Water analysis is required before installation, and drain requirements vary by municipality. We handle both as part of the install.
