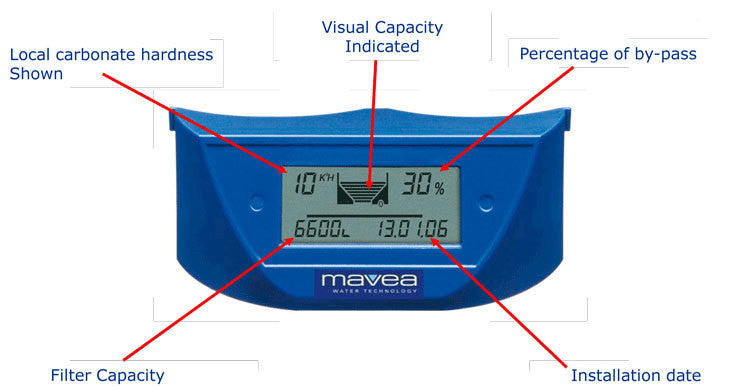

A complete Vivreau Purity Quell ST filter system in one box: the pressure vessel, a standard Quell ST cartridge, and the lid with its measuring display unit (MDU). Nothing else is needed to plumb it in. It protects espresso machines, coffee brewers, vending machines and combi ovens from scale, and takes out chlorine, off-tastes and heavy metals.

Choose the 600 for a single espresso machine or brewer, the 1200 for a busier bar or more than one machine. Vivreau also makes a 450 (4,217 L at 40% bypass) for lower volumes; ask us.

Purity 600 Quell ST Purity 1200 Quell ST
Capacity, coffee and espresso, 40% bypass, at 10 gpg carbonate hardness 7,207 L (1,904 US gal) 13,187 L (3,484 US gal)
Capacity, combi ovens, 10% bypass, at 10 gpg 5,118 L (1,352 US gal) 9,364 L (2,474 US gal)
Capacity by chlorine reduction 7,500 L (1,981 US gal) 13,500 L (3,566 US gal)
Dimensions (H x W) 20.47 x 9.80 in (520 x 249 mm) 21.65 x 11.34 in (550 x 288 mm)
Weight, dry / wet 26 / 33 lbs (12 / 15 kg) 40 / 53 lbs (18 / 24 kg)
Maximum operating pressure 100 psi (6.9 bar)
Water temperature 39 to 86 F (4 to 30 C)
Nominal flow 120 L/h (31.7 US gal/h); rated service flow 1.8 L/min
Maximum flow at 14.5 psi (1 bar) pressure loss 350 L/h (92.4 US gal/h)
Pressure loss at nominal flow, with MDU 0.36 bar (5.22 psi) 0.32 bar (4.64 psi)
Pressure loss at nominal flow, without MDU 0.27 bar (3.92 psi) 0.24 bar (3.48 psi)
Connections G1 in / G 3/4 in
Operating position Horizontal or vertical
Chlorine reduction Tested to NSF/ANSI 42; 97.1% average reduction at 2.0 mg/L influent
Part numbers 106220 (kit), 276000 (cartridge) 106221 (kit), 275900 (cartridge)

Self-contained; no separate filter head. Sits in line ahead of any espresso machine, coffee brewer or vending machine, and behind a domestic softener without trouble. Optional flow meter (1013871 NPT, 1009598 BSP) and temporary hardness test kit (710801). Drinking water supply only.

Capacities above assume average use at 10 gpg carbonate hardness; harder water or a different bypass setting shortens them. Replace the cartridge when the MDU shows the rated capacity has been used, with a Purity Quell ST replacement cartridge.

Not sure which size? Call 877-88-DOLCE (36523) or send us the details.
