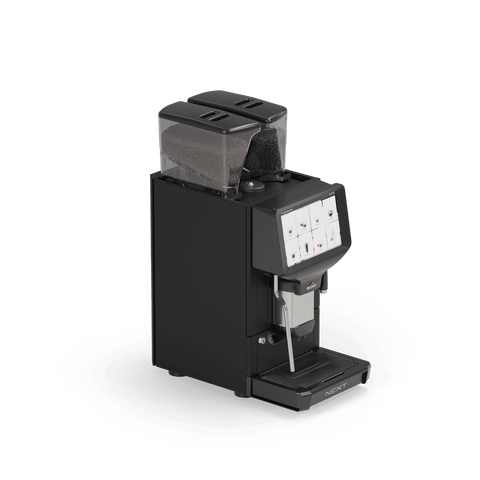

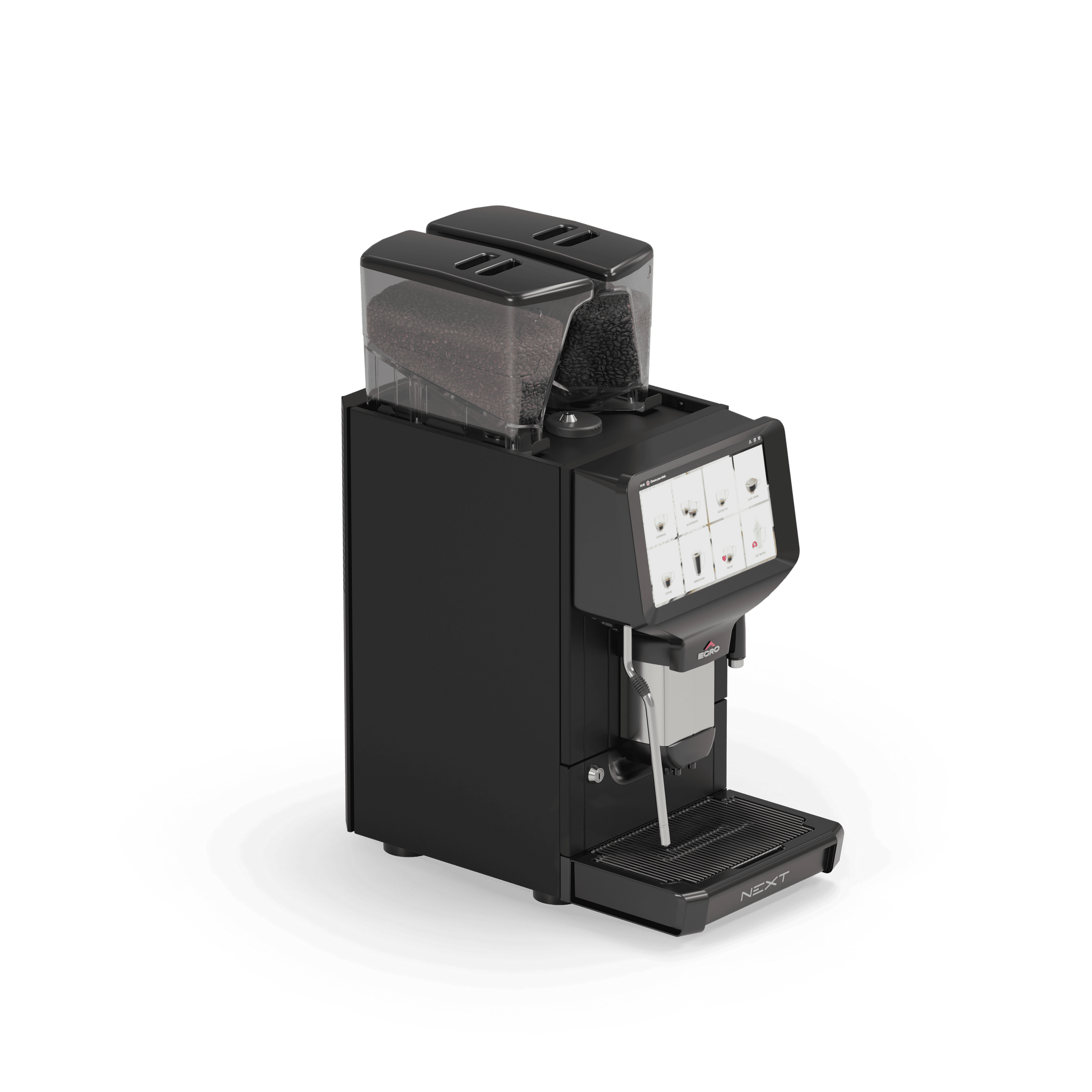

The two-step configuration. The machine pulls espresso automatically and the operator steams milk on the iSteam wand, which keeps a person in the part of the drink that shows.
Dual self-adjusting grinders, two hoppers, a 10.1 in tablet interface, and a patented stainless brew group. Built for high volume and for self-service.
Specifications
| Dimensions (W x D x H) |
12 x 23 x 31 in (18.5 in wide with the Powder Module) |
| Weight |
126 lbs (154 lbs with the Powder Module) |
| Electrical |
208-240 VAC, 6,000 W, 30 A circuit, NEMA L6-30R, 60 Hz |
| Grounding |
No neutral used. Dedicated ground required |
| Coffee boiler |
0.5 L |
| Steam boiler |
1.9 L |
| Brew group |
Patented stainless, 18 g (25 g high-capacity option) |
| Bean hoppers |
Two, 1 kg each, 54 mm flat stainless burrs |
| Water |
Dedicated cold line, 3/8 in female NPT with shut-off within 4 ft. 30-70 psi, 2-3 gpg. Plumbed only, no tank |
| Drain |
Open gravity, minimum 2 in inside diameter, within 4 ft |
| Milk |
iSteam intelligent steam wand, standard |
| Output per hour |
Espresso 125 single / 205 double. Café crème 109 / 140. Hot water 186 |
| Recommended volume |
250 cups per day |
| Certifications |
CE, cETLus Listed, ETL Sanitation Listed |
Optional Powder Module for water-soluble flavors: two 1.8 L hoppers, on its own 110-120 VAC 15 A GFI circuit.

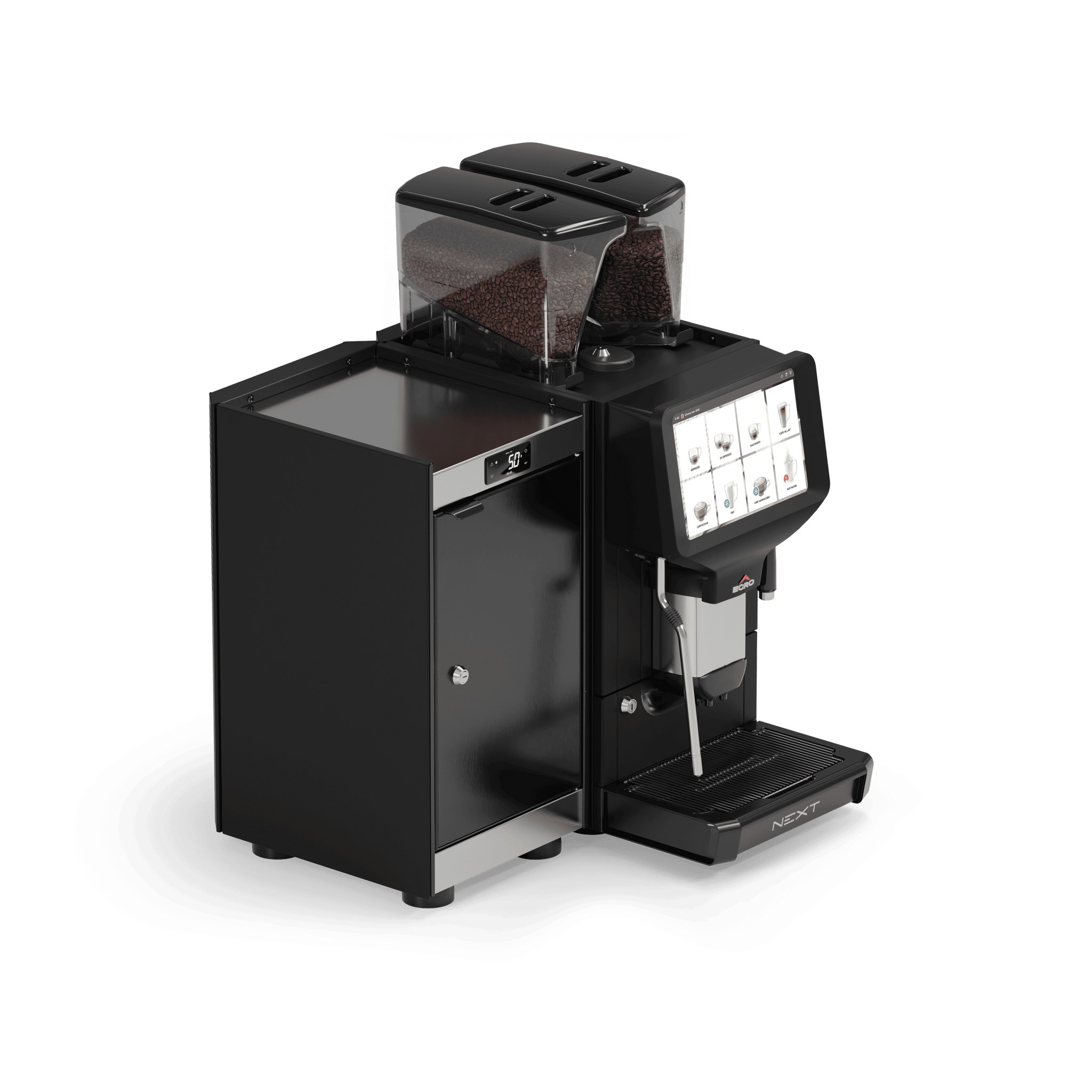

This machine makes no milk drinks on its own. If you want one-touch cappuccino, look at the NEXT Top Milk.
Call 877-88-DOLCE (36523) or send us the details.
