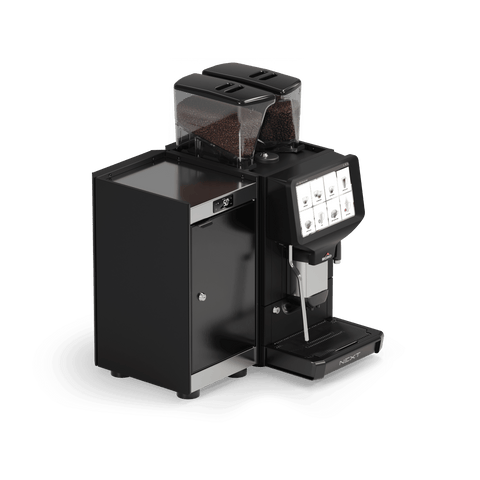

A one-step super-automatic. The machine grinds, brews, steams and dispenses milk into the cup at a single touch, which is what you want in self-service and anywhere the person making the drink is not a trained barista.
Dual self-adjusting grinders, a 10.1 in HD tablet interface, and automated daily cleaning that takes about five minutes.
Fridge configuration matters, and changes the footprint
|
Countertop fridge |
Undercounter fridge |
Bev-Air |
| Machine (W x D x H) |
24 x 23 x 31 in |
12 x 23 x 31 in |
12 x 23 x 31 in |
| Weight |
190 lbs |
126 lbs |
126 lbs |
| Milk capacity |
6.5 L, with level sensor |
Customer-supplied undercounter fridge |
approx. 2 gal |
Two things to know before choosing. The undercounter option needs a professionally cut 2.5 in access hole in your fridge, and it loses the under-counter grounds chute. Cold Milk Foam is not available with any undercounter configuration, or alongside Multi-Milk.
Specifications
| Electrical |
208-240 VAC, 6,000 W, 30 A circuit, NEMA L6-30R, 60 Hz |
| Grounding |
No neutral used. Dedicated ground required |
| Coffee boiler |
0.5 L |
| Steam boiler |
1.9 L, 1.5 bar |
| Brew group |
Patented stainless, 18 g (25 g high-capacity option) |
| Bean hoppers |
Two, 1 kg each, 54 mm flat stainless burrs |
| Water |
Dedicated cold line, 3/8 in female NPT with shut-off within 4 ft. 30-70 psi, 2-3 gpg. Plumbed only, no tank |
| Drain |
Open gravity, minimum 2 in inside diameter, within 4 ft |
| Output per hour |
Espresso 125 / 205. Cappuccino 129 / 207. Café crème 109 / 140. Hot water 186 |
| Recommended volume |
300 cups per day |
| Certifications |
CE, cETLus Listed, ETL Sanitation Listed |
Options: Multi-Milk for two milk types, Cold Milk Foam, iSteam wand, and a Powder Module with two 1.8 L hoppers on its own 110-120 VAC 15 A GFI circuit.
Call 877-88-DOLCE (36523) or send us the details.
