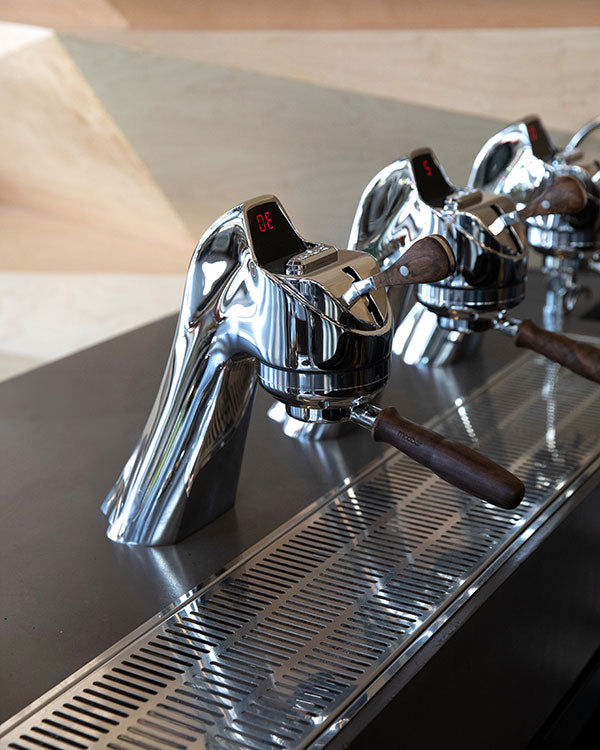

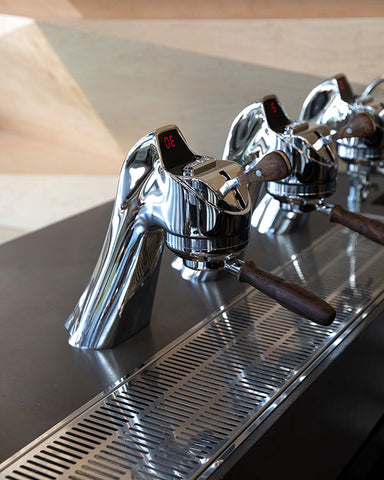

Auto-volumetric espresso with the machine under the counter and only the tap above it. The bar becomes open, and the barista and the customer end up on the same side of the conversation.
Linea PB volumetrics with optional scales, a multi-position lever with four saved programs, PID temperature control and a heated brew group. The add-a-tap system runs two taps from one module. The 2 Tap option is one module feeding two taps.
Specifications
|
Module |
Tap |
| Dimensions (W x D x H) |
16 x 14 x 8.5 in |
5.4 x 14 x 12.4 in |
| Weight |
40 lbs |
23 lbs |
Dual boiler, 2.8 L total.
Site requirements
208-240 V, single phase, 50/60 Hz, 14.2 A, 3,264 W. Dedicated cold water line with filtration and an open drain within reach of the module. We confirm the exact sizes against the Modbar install template before anything is cut.
Certified ETL for electrical safety in the US and Canada to UL-197 and CSA22.2, and listed for sanitation to NSF/ANSI Standard 4.
Call 877-88-DOLCE (36523) or send us the details.
