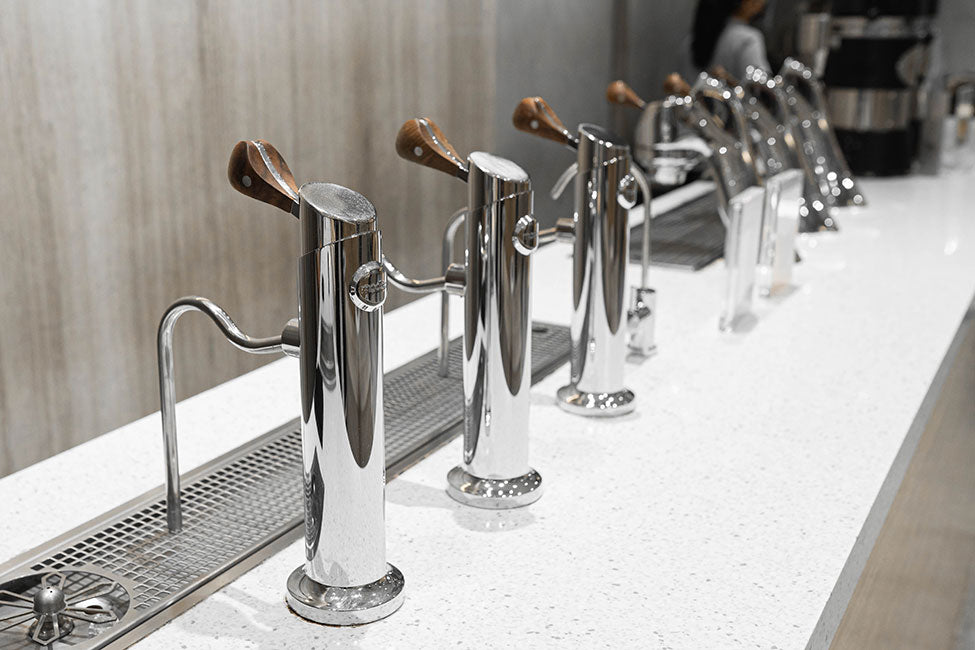

Steam taps at the counter with the boiler underneath. Pairs with a Modbar espresso module, or stands on its own where the milk work is separated from the espresso station.
Double-walled performance touch steam wand on an omnidirectional ball fitting. Minimal purge, no steam valve rebuilds, and a simple on/off switch driving a solenoid inside the module. Connections are on the right-hand side for service access.
Specifications
|
Module |
Tap |
| Dimensions (W x D x H) |
16 x 14 x 8.5 in |
3.5 x 12.3 x 13.1 in |
| Weight |
40 lbs |
8 lbs |
Dual boiler, 4.6 L total.
Site requirements
208-240 V, single phase, 50/60 Hz, 14.2 A, 3,310 W. Dedicated cold water line with filtration and an open drain within reach of the module. We confirm the exact sizes against the Modbar install template before anything is cut.
Certified ETL for electrical safety in the US and Canada to UL-197 and CSA22.2, and listed for sanitation to NSF/ANSI Standard 4.
Call 877-88-DOLCE (36523) or send us the details.
