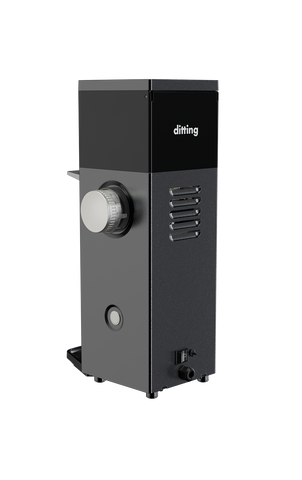

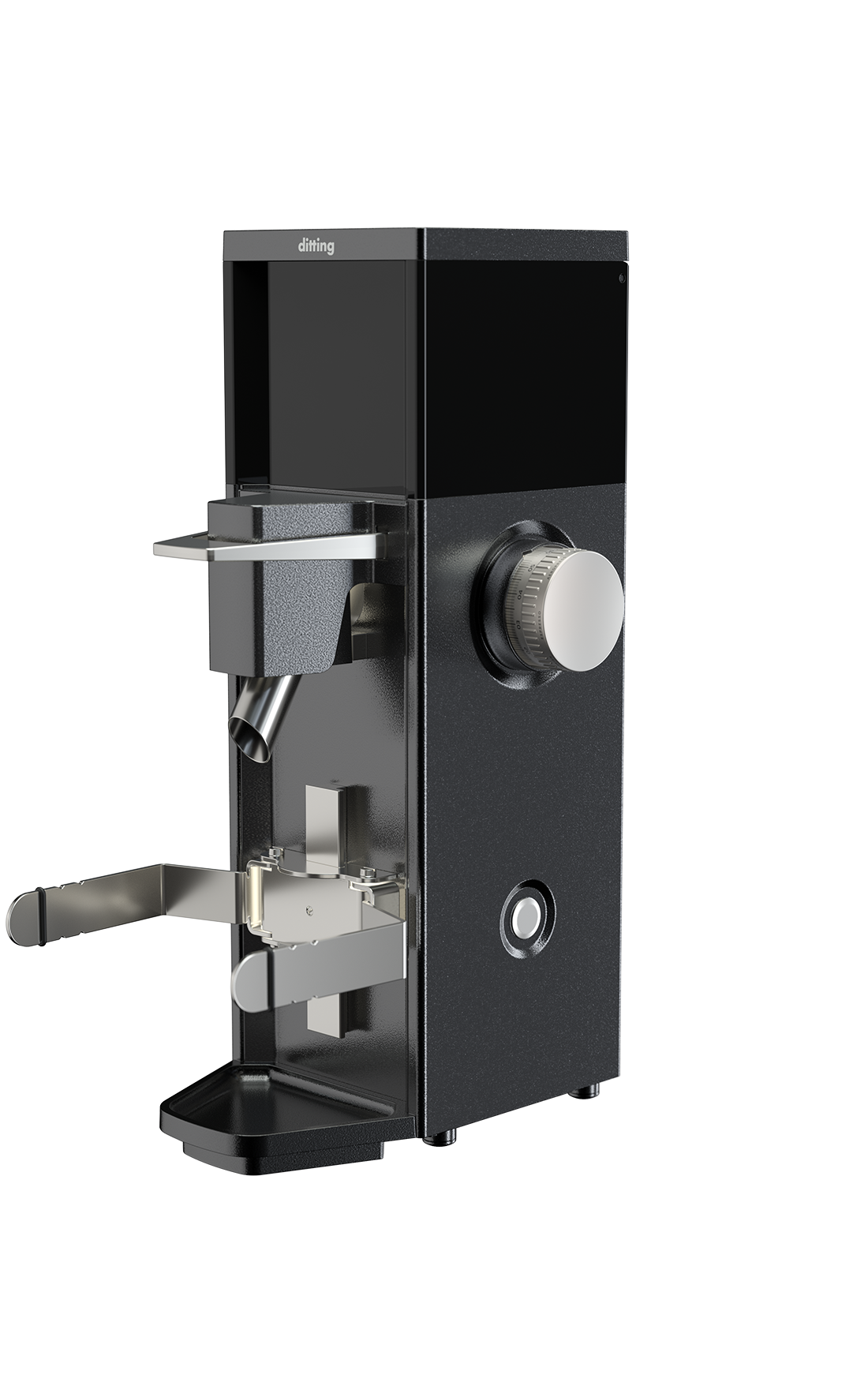

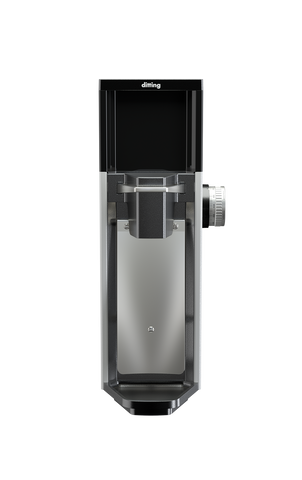

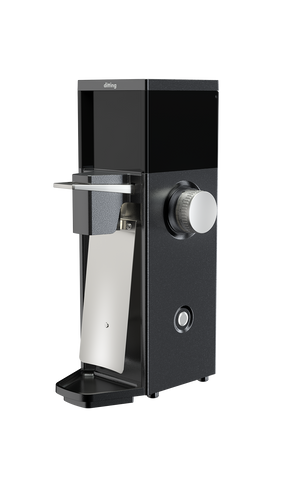

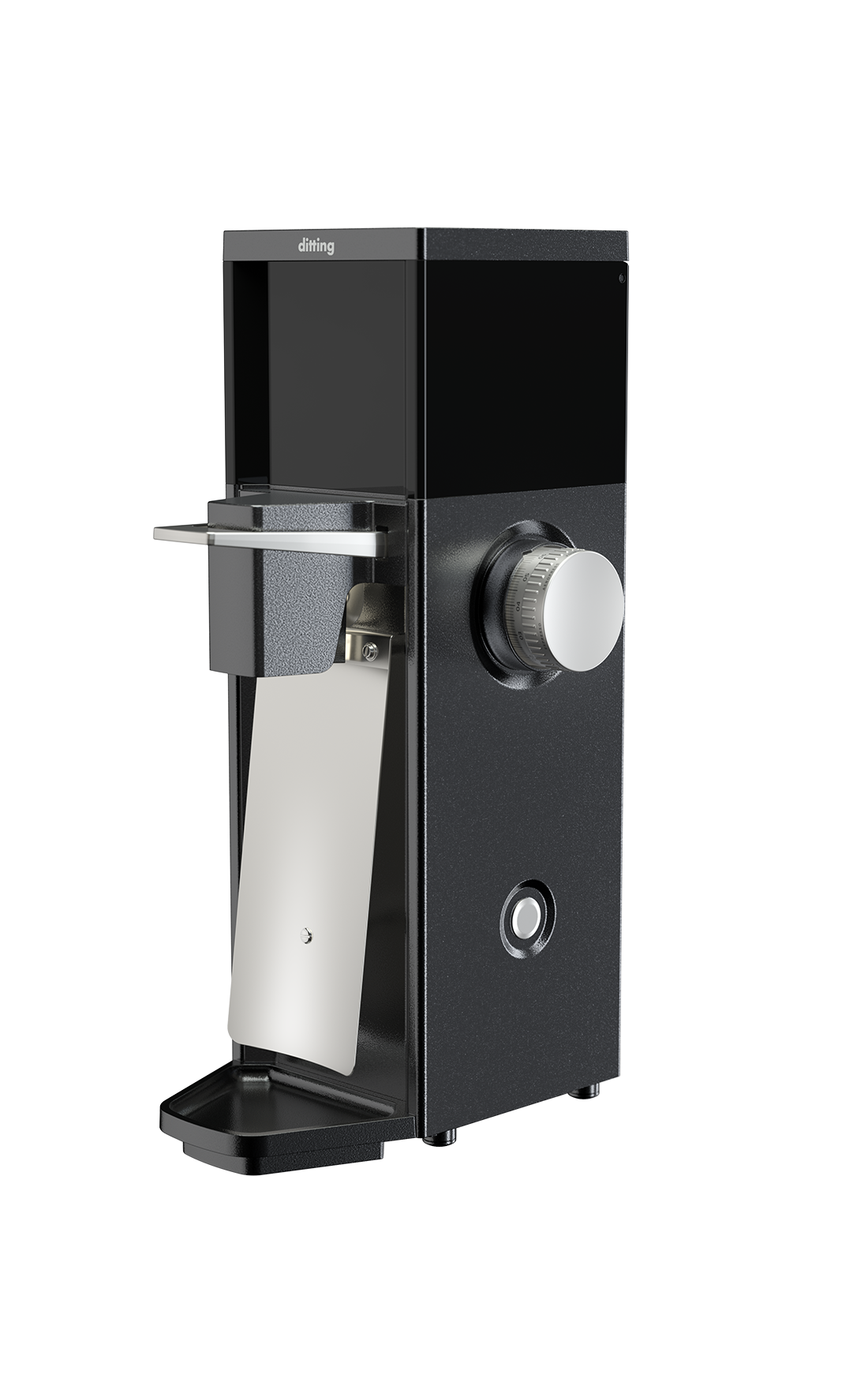

The successor to the long-running Ditting 804, built for shop grinding and retail bag service. 80 mm burrs, a bag clamping lever with knocker, and a shaker plate that settles the grounds as they fall.
Grind range runs from Turkish fine all the way out to cold brew coarse, which is the point of a shop grinder: one machine serving whatever a customer walks in wanting.
Specifications
| Burr diameter |
80 mm, special steel |
| Burr speed |
1,700 rpm at 60 Hz |
| Burr life |
approx. 3,000 kg at median setting |
| Hopper capacity |
approx. 510 g |
| Output |
7.5 g/sec at medium, 450 g/min |
| Grind range |
Turkish fine to cold brew coarse |
| Electrical (US) |
110-127 V, 60 Hz, single phase, 500 W |
| Circuit |
16 A slow fuse |
| Dimensions (W x H x D) |
8.5 x 21.1 x 11.8 in (216 x 536 x 300 mm) |
| Weight |
38.4 lbs (17.4 kg) |
| Noise |
55 dB idle, 78.8 dB grinding |
| Max daily output |
48 kg per 8 hour day |
| Protection |
IPX1, class I |
| Certifications |
CB, UL/CSA, NSF, KTL, EAC |
Ditting publishes certification marks for this model but not the standard numbers, and does not publish a running amperage. Ask us and we will request both from the factory before you spec a circuit.
